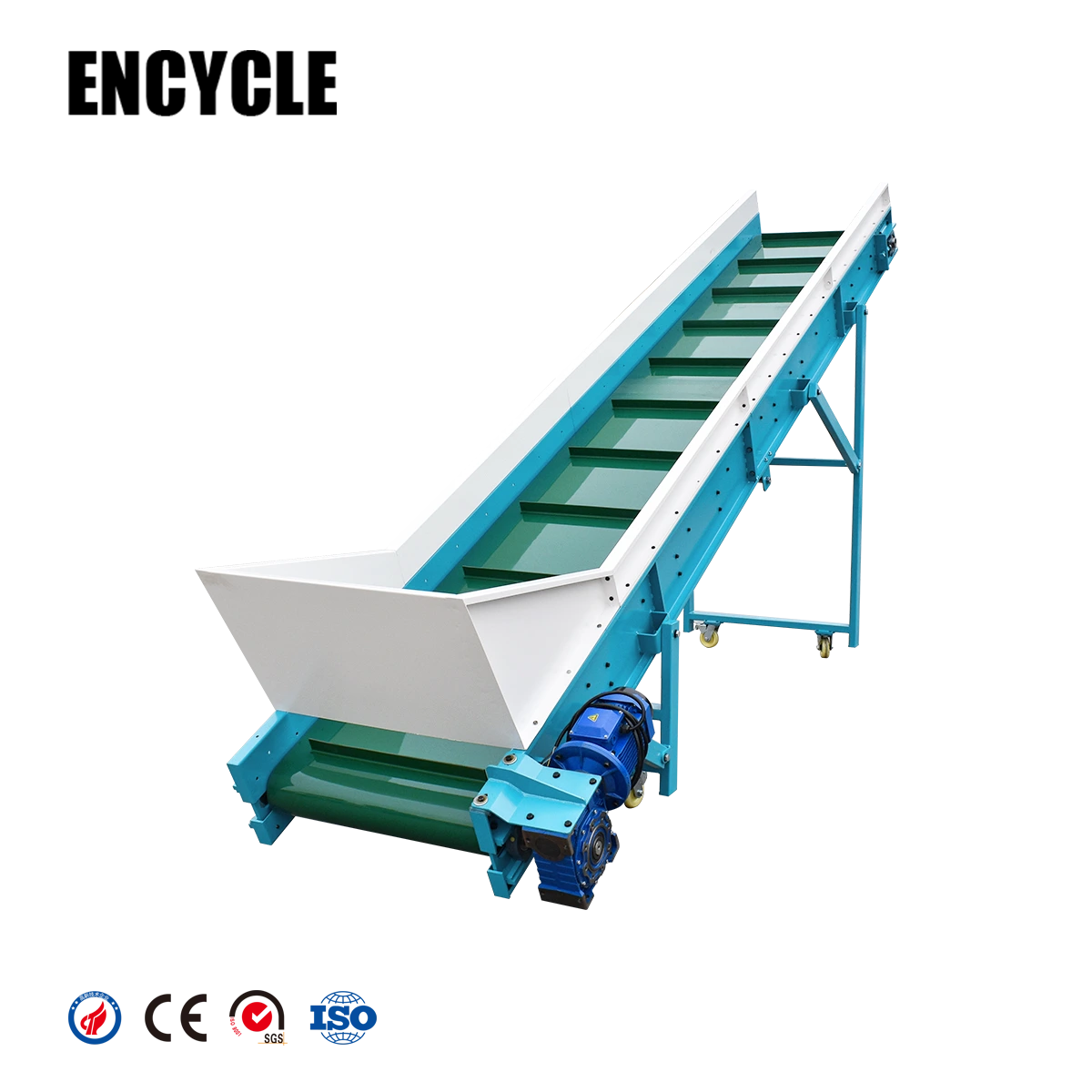

Industrial PVC Conveyor Belt

Belt conveyors have strong conveying capacity, long conveying distance, simple structure

and easy maintenance,and can conveniently implement programmed

control and automated operation.

The continuous or intermittent movement of conveyor belts is used to transport items

weighing less than 100KGor in powder or granular form. It runs at high speed, smoothly,

with low noise, and can be transported up and down hills.

Inquiry

Write a Review

Product Details conveyor belt

Conveyor belts, as indispensable transportation tools in logistics and production processes, are widely used in various industries. There are many types with different characteristics, and the selection needs to be matched according to specific application scenarios.

Conveyor Belt

It combines the powerful properties of rubber, fiber, and metal, or the excellent characteristics of plastic and fabric, aiming to efficiently carry and transport various materials.

This type of conveying tool not only can transport materials continuously, efficiently, and at a large angle, but also has many advantages such as safe operation, easy use, easy maintenance, and low shipping costs.

Conveyor Belts

Conveyor belts are an important link in modern industrial automation, and proper selection and maintenance can significantly improve production efficiency.

Industrial Conveyor Belt Product Details

Conveyor belt is a key equipment used for continuous conveying of materials in industrial production, widely used in industries such as mining, ports, power, metallurgy, building materials, chemicals, and food.

Plastic PET Bottle

Waste tire

Waste Books

Woven Bags

Industrial Conveyor Belt Product Specifications

Our specialists can help you find the perfect seating for your home.

Model No.	Width	Length	Height	Conveyor Belt Material	Motor Power	Support Tripod
TSQ-0440	400	4000	1.5	5MM PVC	1.5	square tube
TSQ-0540	500	4000	1.5	5MM PVC	1.5	square tube
TSQ-0650	600	5000	2	5MM PVC	1.5	square tube
TSQ-0850	800	5000	2	5MM PVC	1.5	square tube
TS-1060	1000	6000	2.5	5MM PVC	2.2	square tube
TS-1260	1200	7000	2.8	5MM PVC	2.2	square tube

Video List

Video description.

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

FAQ

Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

Conveyor belt slippage: The relative sliding between the conveyor belt and the driving drum cannot effectively transmit power, resulting in a decrease in conveying efficiency or even shutdown.

Clean the oil stains on the surface of the drive drum, and if the wear is severe, re coat it with glue; Check the tensioning device and adjust the tension of the conveyor belt to the appropriate range; Control the loading capacity of materials to avoid overload operation.

Belt deviation: The conveyor belt deviates from the center position during operation, causing friction between the edge and the frame, and even leading to belt tearing.

Adjust the levelness of the rack to ensure that the conveyor belt joints are flat (if the joints are skewed, they need to be reconnected); Adjust the roller group one by one: If the conveyor belt deviates to the right, the right roller group can be moved forward slightly in the running direction

Surface damage of conveyor belt: Scratches, tears, excessive wear or local damage on the surface, affecting the stability of material transportation.

Install screening or magnetic separation equipment at the entrance of the conveying system to remove sharp foreign objects; Timely correct the deviation of the conveyor belt, adjust the gap between the frame and the conveyor belt to avoid friction.

Cracking or disconnection of conveyor belt joints: Cracks, delamination, or even complete disconnection occur at the joints, leading to interruption of transportation.

Adjust the tensioning device to reduce the tension at the joint and avoid overload operation; Check the contact status between the joint and the drum to ensure even force distribution, and replace the joint position if necessary.
