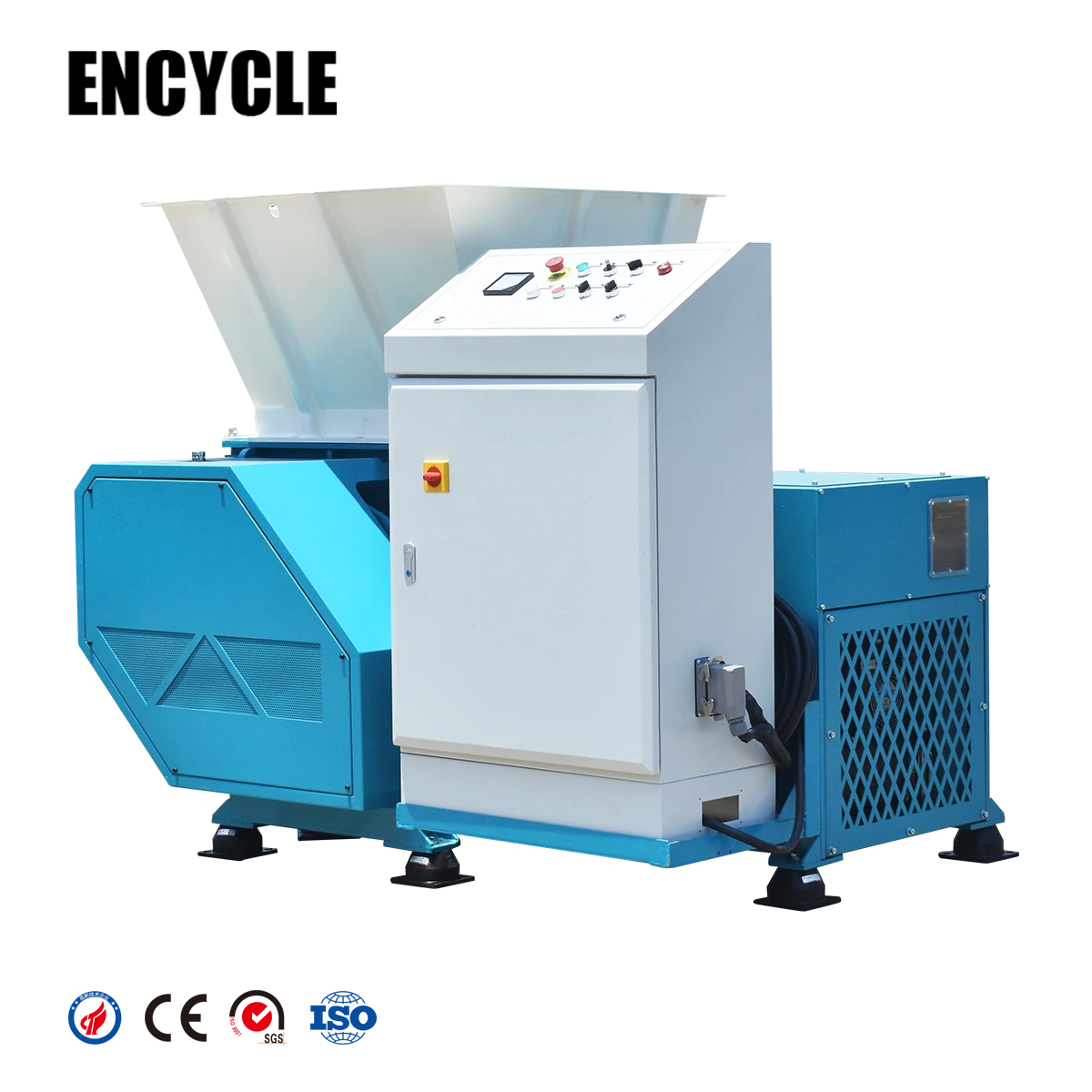

Industrial Single Shaft Shredder Machine
Single Shredde Machine Product Details
Single-shaft shredders have a wide range of applications, including plastic shredders, wood shredders, tire shredders, and electronic waste shredders.
Single Shredder Shaft Machine
Single shaft shredders are widely used and are suitable for shredding materials such as industrial plastics, wood waste and tires.
This series of shredders are equipped with PLC automatic control systems, large-capacity hoppers and horizontal push systems.
Single Shredder Machine
1. This single-shaft plastic shredder can shred various bulk materials, basket-shaped materials, pipes, plates, sheets, tires, and large rolls of film, which are difficult for single-shaft shredders to shred.
2. The frame features a modular structure, made of precision-machined, extra-thick plates. The rotary axis is a forced, wide-angle, hexagonal prism, and the hopper is large and sturdy, allowing it to handle large materials.
3. The rotary blades are specially designed and processed in terms of thickness, shape, and arrangement.
4. The PLC control system allows for forward and reverse rotation, and the machine automatically shuts down when there is too much material, providing a safety feature. It operates safely at low speeds, with low noise and dust.
5. The blades are made of special alloy steel for durability.
Single Shredder Product Details
Single shaft shredders use a single rotating shaft and are equipped with sturdy blades to shred materials precisely. The rotor rotates against the stationary counter blades to cut the material into small pieces.
Single Shredder Product Specifications
Our specialists can help you find the perfect seating for your home.
| Model No. | Oil Cylinder Distance | Main Axis Rpm | Motor Power | Hydraulic Power | Dimensions | Weight |
| TW2260 | 500 | 80 | 18.5 | 2.2 | 1800*1300*1700 | 1650 |
| TW4080 | 815 | 80 | 37 | 3.75 | 2800*1770*1950 | 3950 |
| TW40100 | 815 | 80 | 45 | 3.75 | 2800*1980*1950 | 4250 |
| TW40120 | 815 | 80 | 55 | 5.5 | 2800*2400*2100 | 5250 |
| TW40150 | 815 | 80 | 75 | 5.5 | 2800*2650*2100 | 6650 |
| TW48150 | 1100 | 80 | 90 | 7.5 | 3700*2800*2500 | 11100 |
Video List
Video description.
FAQ
The single shaft shredder is driven by a single motor and a reducer, and two sets of blade shafts are simultaneously
operated through gear division to achieve material cutting and shredding.
