Waste Plastic PET Bottle Recycling Washing Line
Mainly used for producing food grade PET particles, widely used in chemical fiber products
The recycled PET plastic bottles are first separated from the label by the bottle body,
PET Recycling Washing Line
Plastic PET Recycling Washing Line
1.Reduce environmental pollution
PET plastic bottles take hundreds of years to degrade, landfill can cause microplastics to seep into soil and groundwater, and incineration releases carbon dioxide, exacerbating the greenhouse effect. Data shows that China generates millions of tons of PET plastic waste every year, of which only about 15% is recycled.
2.Relieve resource pressure
Recycling PET plastic bottles can be converted into recycled raw materials (rPET) for the production of chemical fibers, industrial products, or food packaging. For example, domestically recycled PET bottles can be exported to Europe and America for food packaging before being imported into China, forming a cross-border circulation. However, rPET has not yet been fully allowed for food packaging in China, which has become a major obstacle to the industry's implementation.
PET Recycling Washing Line
PET Plastic Recycling Washing Line
The PET bottle cleaning and recycling production line is used for recycling and reprocessing waste plastic PET bottles to clean PET bottle flakes, including cola bottles, Pepsi bottles, mineral water bottles, etc. The PET bottle cleaning production line is designed and manufactured by our professional plastic recycling team
Recycling Waste PET Bottle
Recycling waste PET plastic is a complex process. First, waste mineral water bottles, plastic bottles, PET bottles, and other PET plastic bottles undergo fine processing through recycling and washing equipment. This process includes sorting, stripping/de-labeling, crushing, washing, dehydration, and drying.
Plastic PET Recycling Washing Line

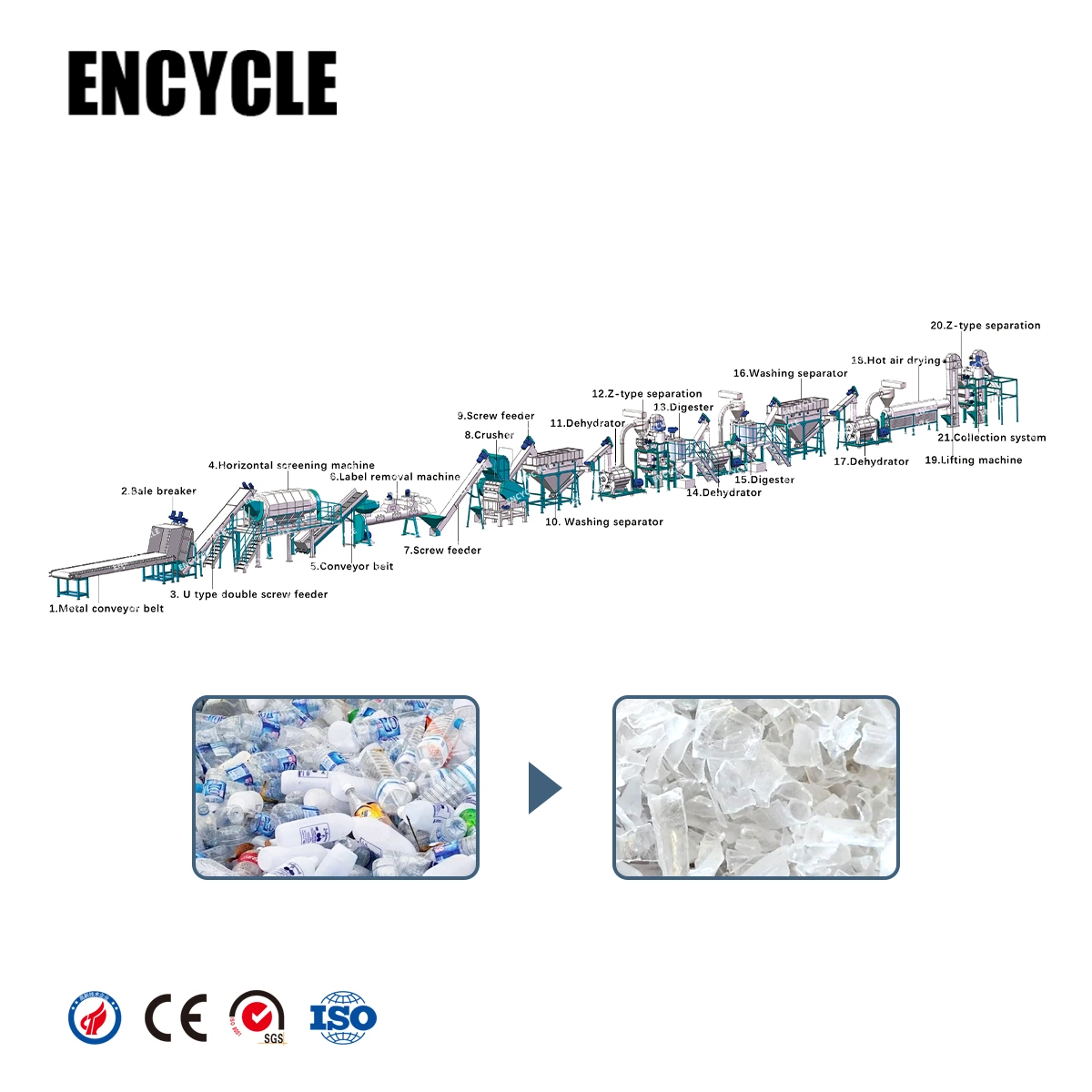

The PET recycling washing line is a fully automated system designed to process used PET bottles into clean,
pollution-free PET sheets that can be reused to produce new products such as fiber or food grade containers.
Conveyor Belt System
The PET bottle's journey through the washing line begins with the conveyor belt.
This crucial component efficiently transports the bottles from one stage to the next.
Bag Unpacker
Mechanically unpacks the compressed material to loosen the material
for easier processing.
U-shaped double-screw loader
Conveys the unpacked PET bottles to the next process.
The horizontal screener
Screens the unpacked material to remove any sand or small metals
from the PET bottle material.
Pre-sorting unit
The first step in the recycling process is to sort and separate the various types of
plastic bottles, including PET bottles, according to their composition.
PET Recycling Washing line Specifications
PET bottle recycling production line parameters
| Capacity（kg/h) | Power Installed（kw) | Required Area (m²) | Manpower | Steam Volume（kg/h) | Water Supply （m³/h) |
| 550 | 220 | 400 | 8 | 350 | 1 |
| 1000 | 500 | 750 | 10 | 500 | 3 |
| 2000 | 700 | 1000 | 12 | 800 | 5 |
| 3000 | 900 | 1500 | 12 | 1000 | 6 |
| 4500 | 1000 | 2200 | 16 | 1300 | 8 |
| 6000 | 1200 | 2500 | 16 | 1800 | 10 |
Video List
Video description.
FAQ
The PET bottle cleaning line is the core equipment in the process of recycling and regenerating PET bottles, mainly used to remove labels, oil stains, impurities, etc. on the surface of PET bottles, providing clean raw materials for subsequent granulation.
