Plastic Film Recycling Washing Line

Film Recycling Washing Line

The plastic film cleaning and recycling production line is a specially designed

equipment system for processing plastic film waste.

Its main function is to recycle, clean, and process waste plastic film into

reusable plastic particles or other plastic product raw materials.

The plastic film cleaning and granulation production line can adapt to various

types of waste plastics, including plastic woven bags, waste plastic films,

plastic packaging bags, etc. Can meet the needs of

all plastic recycling plants for plastic film recycling.

Inquiry

download

塑料清洗线(软塑料）

Write a Review

Film Recycling Washing Line

Film Crusher Recycling Washing Line

1.Environmental significance

This device can effectively reduce white pollution, especially with a recycling rate of over 80% for agricultural films, avoiding farmland pollution. Through cleaning treatment, waste film can be converted into fuel or plastic raw materials, reducing the environmental pressure caused by landfill and incineration.

2.Resource Utilization

Waste films (such as agricultural plastic film, packaging film, etc.) can be processed through cleaning and recycling lines to produce recycled plastic particles for the manufacture of plastic products, avoiding resource waste and environmental pollution caused by direct landfill or incineration.

PE Film Recycling Washing Line

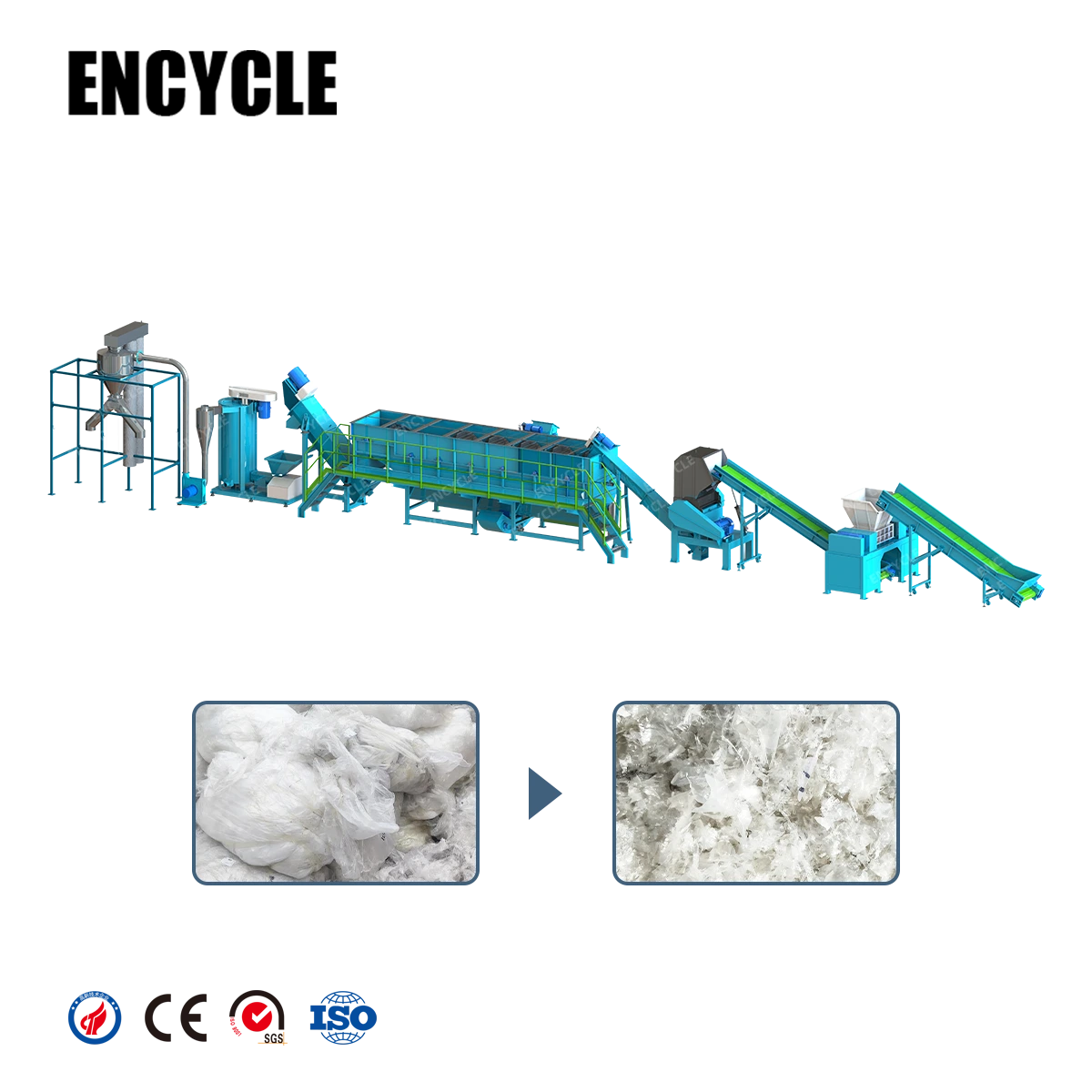

Workflow of a film shredding and washing line:

Conveyor belt loader → (pre-shredder) → shredder → U-shaped screw loader → rinsing tank → friction loader → (rinsing tank → friction loader) → shredder → U-shaped screw loader → horizontal dehydrating machine → (squeezer & hot air dryer) → collection system.

The purpose of the film recycling and washing production line is to remove impurities from recycled waste films and other plastic waste through physical processes involving crushing, washing, and drying, converting them into clean and renewable raw materials, and achieving plastic recycling.

Film Washing Recycling line Product Details

The PP woven bag cleaning line is a complete recycling system designed to crush, clean,

and dry used polypropylene woven bags and similar plastic bags.

PP Woven Bag

Films

Mulch Film

plastic film recycling washing line

Specifications of plastic film recycling washing line

Line Type	Water Consumption	Output(kg/h)	Detergent	Power(kw)
300	0.5T/h	200-300	8kg/h	100
500	1T/h	400-500	12kg/h	130
1000	1.5T/h	800-1000	14kg/h	250

Video List

Video description.

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

COMPANY STRENGTH

Our in-house designers and engineers have produced countless great designs for customers from different industries

FAQ

Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

Oil and grease residue on the film surface affects the uniformity of pelletizing and melting.

Choose the right detergent: Use an alkaline detergent (such as a 1-2% sodium hydroxide solution) for animal/vegetable oils and fats, and an emulsified detergent (such as a surfactant-containing compound detergent) for mineral oils to enhance grease dispersibility.

Printed patterns and text on the film surface were not completely removed, resulting in uneven color in the recycled material.

Add a pretreatment step: Use an alkali immersion and high-temperature steaming process to cause the ink layer to swell and peel. For stubborn inks (such as UV-curable inks), plasma treatment (surface etching) can be used to break down the ink adhesion layer.

Dirt and sand remain in the folds or edges of the film, which then mixes into the material after crushing, causing wear and tear on the pelletizing equipment.

Adding a "shaking + rough washing" process at the front end uses a vibrating screen to shake the stacked film, remove surface dirt, and initially remove large impurities. Pre-crushing and cleaning reduces wear and tear on subsequent processes.

Problem: Film is wrapped around the shredder blades or shaft, causing feed blockage and equipment overload and shutdown.

First, use Encycle Environmental Technology's TLV series crusher. The TLV crusher features a V-shaped blade design and a shearing principle, shredding materials rather than tearing them apart. This produces sharp, angular particles with minimal dust, reducing energy consumption and increasing production capacity.

The film deviates from the centerline of the belt during conveyance or slips due to moisture on the surface, accumulating on the edge of the equipment.

Increasing conveyor friction: Installing anti-slip rubber bumps (5cm apart) on the belt surface or wrapping the roller surface with 80-grit sandpaper can increase the friction coefficient. Evenly feeding: Installing a "separator" at the front of the conveyor belt will disperse the stacked film to the sides, ensuring even distribution of material across the width.
